This pre-wired easy to install power kit is ideal for getting power to sheds, greenhouses and outbuildings etc. This outdoor power kit is supplied complete with all the necessary installation components and materials comprising of-wall plugs,screws, cable cleats, RCD-plug,underground warning tape (used if buried) and full instructions.

P&P Delivery Charge: £15.00 (£18.00 inc. VAT)

AVAILABILITY: Normally in stock ,please contact for ETA

DESCRIPTION:

This armoured cable power kit has everything you need to get power to your
sheds, outbuildings,green houses or your pond. With full installation instructions.

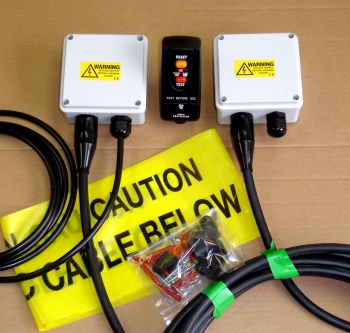

The product consists of two surface mounted weatherproof enclosures,dimensions 100x100x50mm, manufactured from self-extinguishing,light-grey thermoplastic,which is highly resistant to impact,heat,chemical and atmospheric agents.The lids of the enclosures are retained by four self-tapping screws and are sealed to IP56 with a neoprene gasket.
The one box is fitted with a 3-way terminal connector,this is used for connecting the 3 meters of 3 core mains cable and the armoured cable that goes to the extension connector box.
The Extension Box has fitted in the bottom half a 3-way terminal connector used to connect the armoured cable and one 20mm weatherproof cable gland which will accommodate a cable from 6 to 12mm in diameter.

The product is fully wired with 10,15,20,30 meters of 3 core 1.5mm SWA cable depending on size of kit and only requires connecting to a suitable supply with the 3 meters of 1.5mm cable(supplied and fitted).

PLEASE NOTE!
Never allow the boxes to become submersed in water.
For extra safety against electric shock we recommend that the power kit mains supply is fitted with a Residual Current Device (which is supplied with kit)

If the product is connected to the house supply by a 13 Amp plug(or the RCD plug) no notification is required to the local building inspector.
(Part P Building Regulations).
If this product is permanently connected to the house supply through a spur or directly connected to the consumer unit the installation should only be carried out by a electrical contractor who is registered under Part P self-certification scheme.


SPECIFICATION:

Supply Voltage: 220-240 Vac 13 Amps 50-60 Hz.
Environment: temp range -10 to +50c. sealed to IP56.(box)
Supply cable: 3 core flexible 1.5mm.

Armoured Cable Black PVC sheathed.Harmonised core colours.
BASEC 1.5mm-approved (SWA).Temp.limits-15c to 90c.
Do not install when temp.is below 0c.

Cable cleats pack 50, Size 5 £6.00

Prices include VAT and exclude delivery unless otherwise stated.
