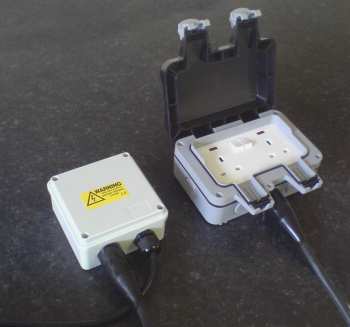

A pre-wired safe and easy kit to provide mains power to the garden.

AVAILABILITY: immediate delivery

DESCRIPTION:

There's no more need for the indoor lead with this tough and durable product.Ideal for outdoor installation and weatherproof to ip56.

Long lasting,will not crack or fade. Switched sockets provide extra control when needed with on/off control and power indicator. Multiple gland entry positions with 8 versatile entry options with M25 capabilty with an easy push out blank plug design. One cut out entry option on rear.

Weather & dust protection -ip rated (IP 56 ) High level of protection against ingress from water jets & dust, the durable seals will maintain integrity over the products life.

Ergonomic Front Cover/Lid Secure, easy to open, lid catch that provides an excellent secure water seal when closed. See through cover which allows visible indication of power. Hinged cover has simple press to open or press to close operation. Neck feature accommodates most plugs with bulky moulded strain relief.

For security to prevent unwanted tampering with socket, a lug feature with a 6mm hole is provided to accept a padlock or similar locking security device ( NOT SUPPLIED )

The product is fully wired with 10 meters of 3 core 1.5mm SWA cable and only requires connecting to a suitable supply with the 5 meters of 1.5mm pvc 3 core cable (supplied and fitted)


Supplied with product
1 * Twin Gang switched socket
1 * Connector box
1 * Pamphlet with installation instructions
14 * Raw plugs
14 * Fixing screws
6 * Armoured cable cleats
10 Mtr Armoured cable (1.5mm pre wired)
5 Mtr Flex Cable (1.5mm pre wired)
8 meters of underground warning tape.(used if cable is buried)


SPECIFICATION:

Type--switched
Operating voltage--230V AC
Rocker switch poles----2
Switch Ratings 230V AC---13Amp Resistive (3kw)
Operating Temerature 0 to 40c
Cable capacity----3x2.5mm


Dimensions (mm) of Twin gang socket
Height---145
Width----165
Depth-----80
Weathersafe rating--IP56 When closed

Dimensions (mm) of connector box.
Height---100
Width---100
Depth--- 50

Rated at IP56

WARRANTY:

1 year guarantee on twin gang socket only.
